ZC Heavy Weight Type Electric Cable Reel
PRODUCT PARAMETERS
Description

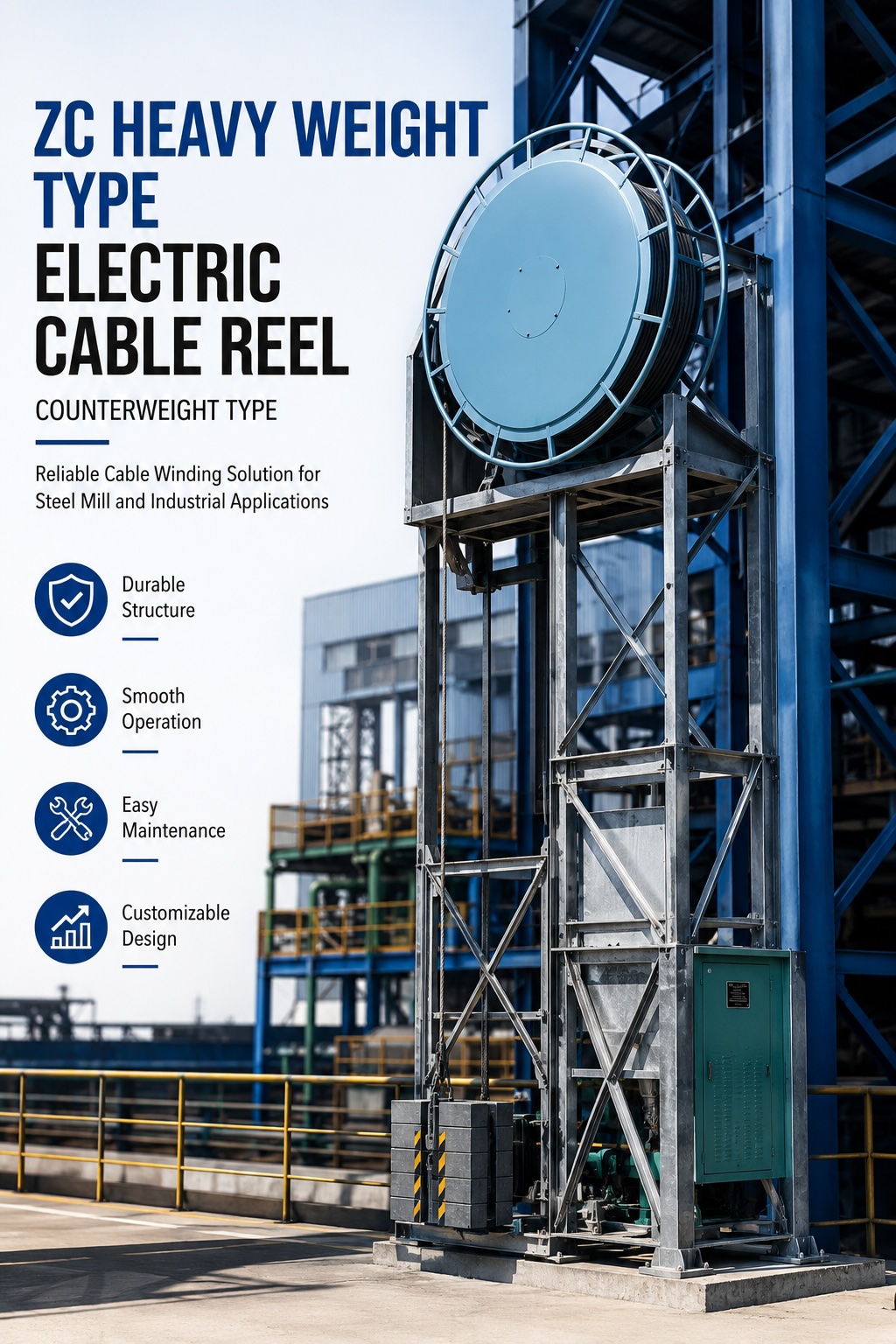

ZC Heavy Weight Type Electric Cable Reel
ZC Heavy Weight Type Electric Cable Reel is a counterweight type electric cable reel used for vertical cable lifting and cable hanging applications. The reel adopts a simple mechanical structure and is convenient for maintenance. It is mainly used on steel mill hot ladle vehicles and other industrial mobile equipment.
After the customer selects the equipment type, cable specification, cable length, and installation height should be confirmed according to the actual working site. The sliding gauge ground installation height is generally above 6 meters.
Applications
- Steel mill hot ladle vehicle
- Vertical cable lifting and cable hanging systems
- Industrial mobile electrical equipment
- Metallurgical equipment
- Factory and workshop cable management
Product Features
- Counterweight type electric cable reel structure
- Simple structure and convenient maintenance
- Suitable for vertical cable lifting applications
- Mainly used for steel mill hot ladle vehicle cable hanging
- Cable specification and length can be selected according to site requirements
- Can be customized according to working conditions
Overall Dimension Table
| Parameter | D1 | D2 | W | A | B | C |
|---|---|---|---|---|---|---|
| 50 m | 800 | 1000 | 250 | 420 | 1050 | 275 |
| 70 m | 1200 | 1400 | 250 | 420 | 1150 | 275 |
| 100 m | 1400 | 1600 | 250 | 420 | 1250 | 275 |
| 150 m | 1500 | 1700 | 250 | 420 | 1350 | 275 |
Main Technical Data
| Electric Cable Model Specification | 50 m Series | 70 m Series | 100 m Series | 150 m Series |
|---|---|---|---|---|
| YC 3×25+1×10 | ZC120-50-4 | ZC120-70-4 | ZC120-100-4 | ZC120-150-4 |
| YC 3×35+1×10 | ZC150-50-4 | ZC150-70-4 | ZC150-100-4 | ZC150-150-4 |
| YC 3×50+1×16 | ZC200-50-4 | ZC200-70-4 | ZC200-100-4 | ZC200-150-4 |
Notes
- The counterweight protective covering rest base angle should be fixed with 4-M30 bolts.
- The bottom of the base angle should be poured with cement.
- The sliding gauge ground installation height is generally above 6 meters.
- Cable model, cable length, and installation requirements can be customized according to working conditions.
