Cable Reel Series
PRODUCT PARAMETERS
Description

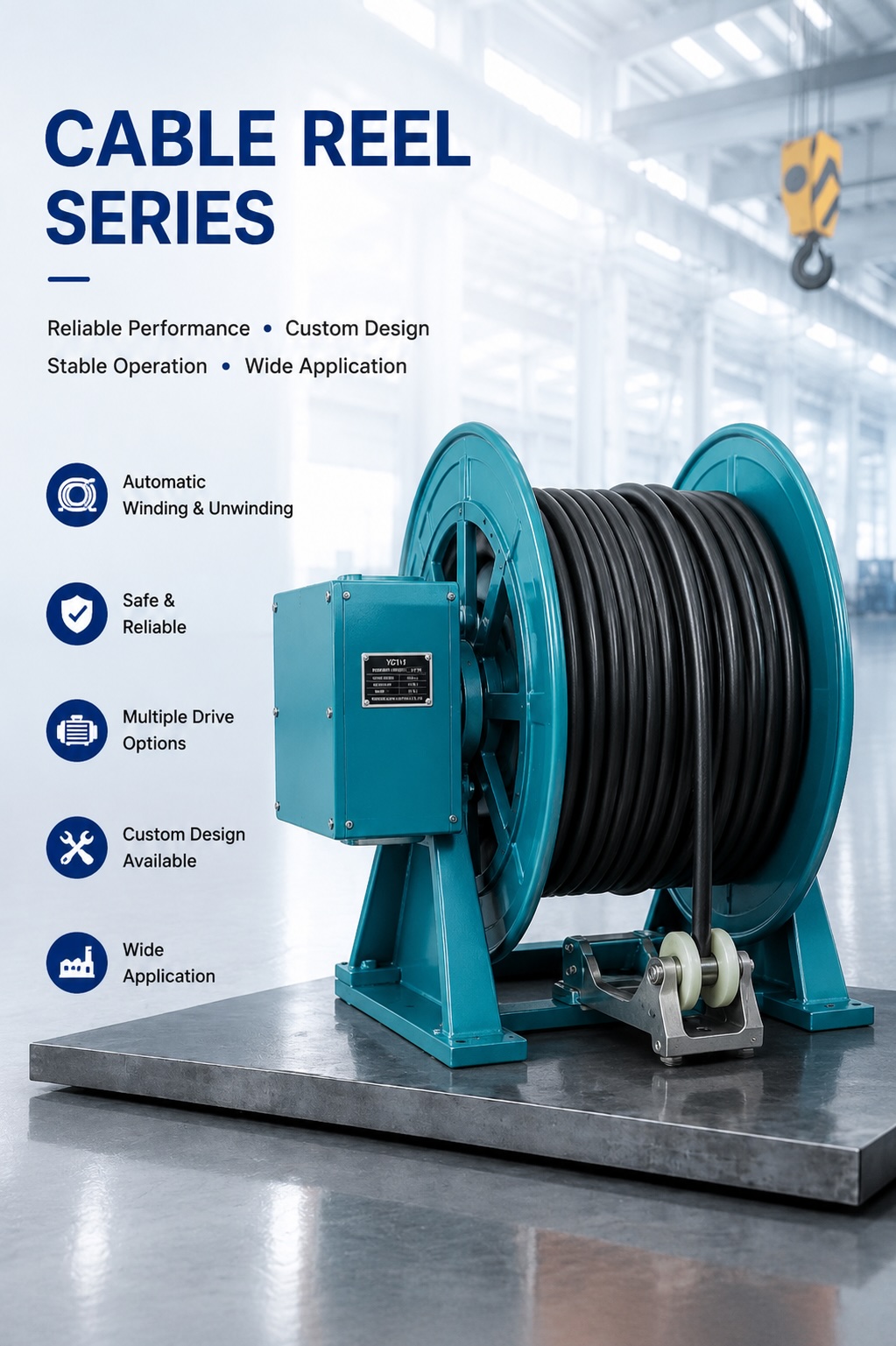

Cable Reel Series
Cable Reel Series is used for automatic cable winding and unwinding in mobile industrial equipment. It is widely applied in cranes, lifting equipment, material handling machinery, metallurgical equipment, ports, mines and other industrial working environments where reliable mobile power supply is required.
According to different cable types, installation patterns, cable length, moving direction and operating conditions, the cable reel can be designed with spring drive, moment motor drive, hysteresis motor drive or other suitable driving methods. The product helps protect cables from dragging, twisting and damage during equipment movement.
Applications
- Mobile power supply for cranes and lifting equipment
- Cable winding and unwinding for travelling machinery
- Power cable management in steel plants, ports, mines and workshops
- Suitable for equipment with horizontal or vertical cable movement
- Used for gas hose, liquid hose and cable transfer applications according to working conditions
Product Features
- Supports automatic cable winding and unwinding during equipment movement
- Multiple driving methods available, including spring drive, moment motor drive and hysteresis motor drive
- Different installation patterns can be selected according to site layout
- Helps reduce cable wear, dragging and twisting
- Suitable for different cable lengths, cable specifications and moving distances
- Customized design is available according to working conditions and equipment requirements
Reel Model Designation
- Structure Type: Different structure types can be selected according to application requirements
- Slip Ring Unit: Usually not marked when not required
- Overhanging Type: Available according to installation conditions
- Hose Number: Optional for gas hose or liquid hose reel applications
- Drum Length: Designed according to cable specification and winding length
- Capacity: Electric current signal cable reel or hose reel options are available according to application
- Installation Pattern: Multiple installation patterns are available
- Power Type: Spring type, moment motor powered type or asynchronous motor powered type
- Product Type: Cable reel or gas hose reel
Installation Patterns
- Pattern A: Vertical coiling
- Pattern A-V: Vertical coiling through radial reversing wheel
- Pattern C: Horizontal coiling on the ground, reel fixed
- Pattern D-H: Horizontal coiling on the ground, coiler movable
- Pattern E: Horizontal overhanging coiling
- Pattern F: Overhanging coiling
Main Technical Data
Technical data can be customized according to working conditions.
Notes
- The cable reel type should be selected according to cable type, cable length, equipment movement direction and installation space.
- For special working conditions, the reel structure, drive method, drum size and cable capacity can be customized.
- If the cable length exceeds standard range, extra cable length should be clearly stated when ordering.
- The product can be matched with cranes, travelling equipment and other mobile industrial machines.
