JT Series Slip Ring Built-in Type Cable Reel
PRODUCT PARAMETERS
Description

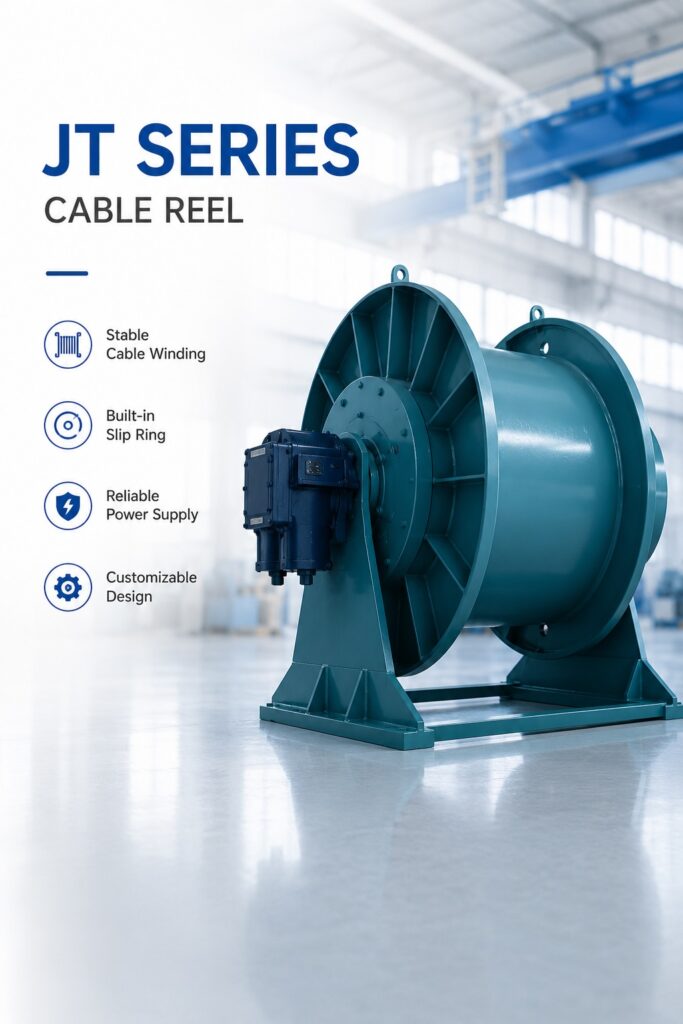

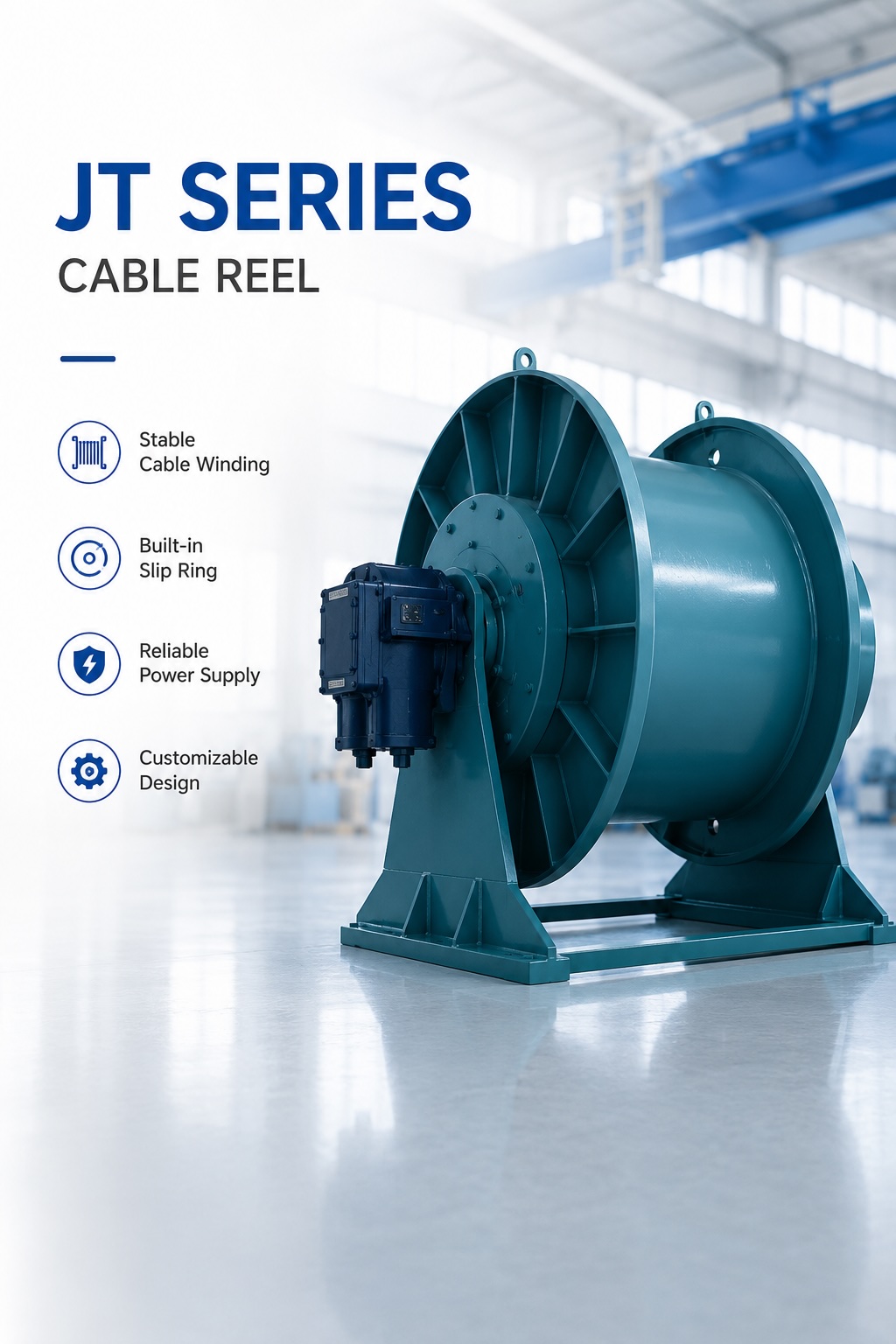

JT Series Slip Ring Built-in Type Cable Reel
JT Series Slip Ring Built-in Type Cable Reel is an industrial cable winding device used for mobile electrical equipment. It is mainly applied in cranes, lifting equipment, transfer cars, metallurgical equipment, port machinery, shipyard equipment, and other working conditions requiring cable collection and power supply during movement.
The product adopts a slip ring built-in structure and is suitable for automatic cable winding and unwinding. It helps keep cables orderly, reduces manual operation, and supports stable power transmission for mobile equipment in industrial environments.
Applications
- Cranes and lifting equipment
- Lifting electromagnet power supply systems
- Metallurgical plants and steel mills
- Ports, docks, and shipyards
- Transfer cars and mobile industrial equipment
- Material handling systems
Product Features
- Slip ring built-in type structure
- Suitable for cable winding and unwinding of mobile equipment
- Compact structure for convenient installation and maintenance
- Stable cable collection during equipment movement
- Can be matched with different cable specifications and working lengths
- Suitable for industrial crane and metallurgical working conditions
Main Technical Data
The JT Series Cable Reel is available in different cable length series, including 10m, 15m, 20m, 25m, and 30m series. Overall dimensions can be selected according to cable specification, winding length, current requirement, and working conditions.
Overall Dimension Table
| Series | Contour Item | A | B | C | D1 | D2 | d | E | F | W |
|---|---|---|---|---|---|---|---|---|---|---|
| 10m Series | 1 | 250 | 300 | 300 | 360 | 500 | 14 | 450 | 600 | 320 |
| 15m / 20m Series | 1 | 300 | 360 | 400 | 500 | 700 | 15 | 440 | 600 | 250 |
| 2 | 490 | 650 | 300 | |||||||
| 3 | 560 | 720 | 250 | |||||||
| 4 | 610 | 770 | 300 | |||||||
| 5 | 720 | 880 | 300 | |||||||
| 25m / 30m Series | 1 | 400 | 460 | 450 | 600 | 800 | 18 | 525 | 675 | – |
| 2 | 641 | 795 | – | |||||||
| 3 | 751 | 905 | – | |||||||
| 25m / 30m Series | 4 | 500 | 580 | 550 | 800 | 1000 | 18 | 892 | 1045 | – |
| 5 | 641 | 795 | – | |||||||
| 6 | 751 | 905 | – | |||||||
| 7 | 892 | 1045 | – | |||||||
| 8 | 1005 | 1160 | – |
Electrical Model Selection
The catalog includes model options for different cable specifications and cable length series, including 10m, 15m, 20m, 25m, and 30m series. Cable specifications shown in the catalog include YQ and YC types, with corresponding current ratings for continuous operation and 1-minute on-off operation.
Because part of the electrical model selection table is not fully clear in the provided image, the detailed model data is not fully listed here to avoid inaccurate information. Technical data can be customized according to working conditions.
Notes
- Please confirm cable type, cable length, rated current, installation method, and working environment before model selection.
- Overall dimensions should be selected according to cable specification and winding length.
- For special working conditions, customized design is available according to actual project requirements.
- Technical data can be customized according to working conditions.
