MC03(RCDY) Series Round Electromagnetic Separator for Bulk Material Iron Removal
PRODUCT PARAMETERS
Description

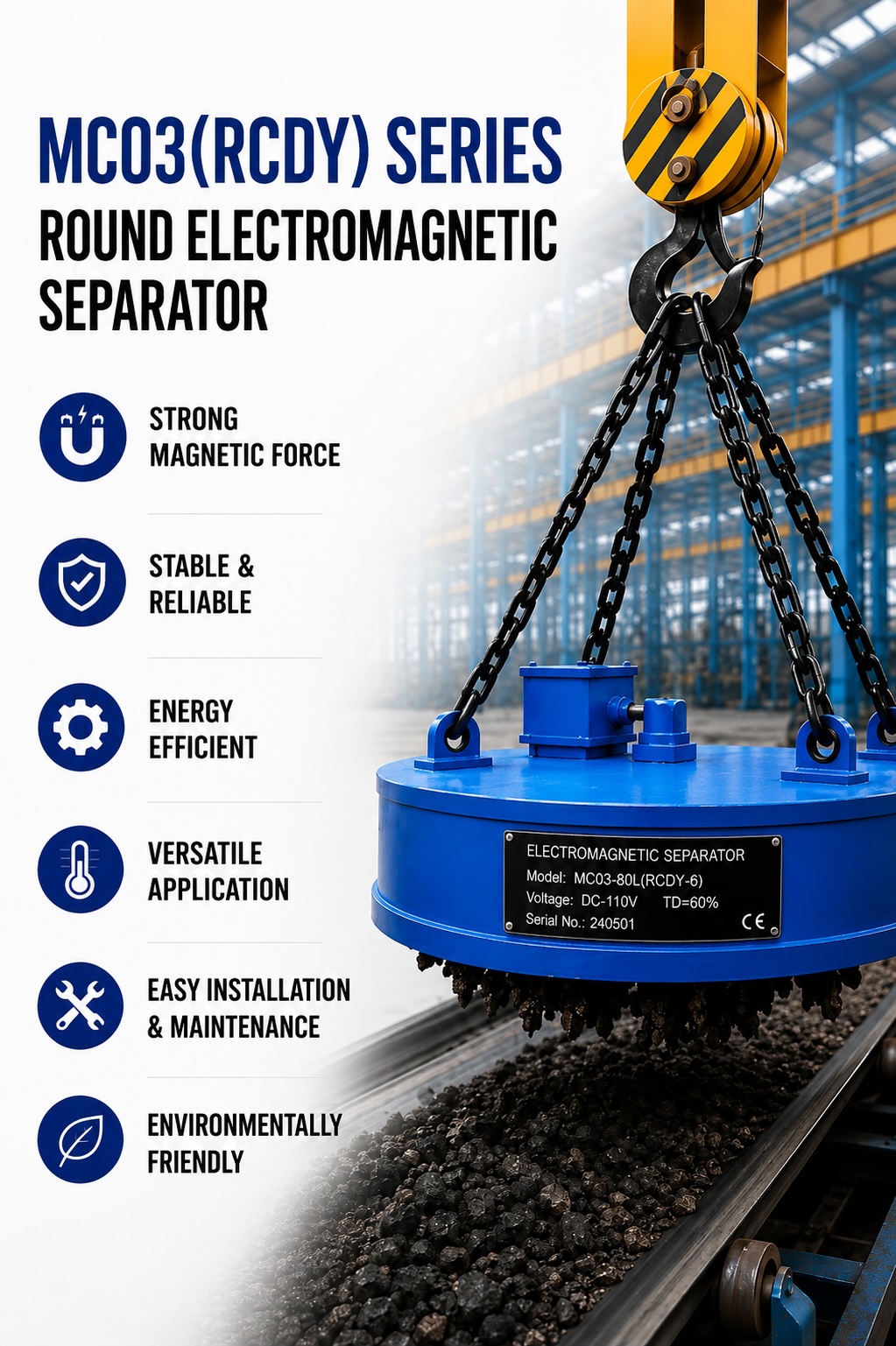

MC03(RCDY) Series Round Electromagnetic Separator
MC03(RCDY) Series Round Electromagnetic Separator is designed for long-term working conditions. It is equipped with an adjustable hook suspension system, which allows convenient adjustment of the erection and installation height according to the conveyor and material layer conditions.
This series provides effective removal of magnetic tramp iron from bulk materials with thicker material beds and larger granularity. According to the catalog information, it can be used for coal, hard coke, ores, limestone, spall, corn and wooden shavings.
Applications
- Coal conveying systems
- Mining and ore processing
- Coke handling lines
- Limestone and gravel processing
- Cement plants
- Power plants
- Bulk material conveyor systems
- Wood shaving and grain material handling
Product Features
- Round electromagnetic separator for removing magnetic tramp iron from bulk materials.
- Designed for long-term operating shifts.
- Adjustable hook suspension system for convenient installation height adjustment.
- Suitable for thicker material beds and materials with larger granularity.
- Can be installed above conveyor belts for continuous iron removal operation.
- Available in different models according to belt width, erection height, voltage, power and working conditions.
Main Technical Data
| Model | Erection Height T (mm) | Belt Width (mm) | Overall Dimension ΦA (mm) | Overall Dimension H (mm) | Voltage (V) | Power (kW) | Mass (kg) |
|---|---|---|---|---|---|---|---|
| MC03-30T(RCDY-3) | 100 | 300 | 300 | 600 | DC-48 | 0.18 | 77.5 |
| MC03-40L(RCDY-3A) | 120 | 350 | 400 | 740 | DC-50 | 0.48 | 120 |
| MC03-50L(RCDY-4) | 150 | 400 | 500 | 700 | DC-75 | 0.8 | 198 |
| MC03-60L(RCDY-5) | 180 | 500 | 600 | 1000 | DC-110 | 1.15 | 318 |
| MC03-70L(RCDY-6A) | 210 | 600 | 700 | 860 | DC-110 | 1.89 | 500 |
| MC03-80L(RCDY-6) | 250 | 650 | 800 | 900 | DC-110 | 2.36 | 640 |
| MC03-90L(RCDY-8A) | 260 | 750 | 900 | 1140 | DC-110 | 2.48 | 968 |
| MC03-100L(RCDY-8) | 290 | 800 | 1000 | 890 | DC-110 | 3.94 | 1070 |
| MC03-110L(RCDY-9) | 320 | 900 | 1100 | 1450 | DC-220 | 4.1 | 1079 |
| MC03-130L(RCDY-10) | 400 | 1000 | 1300 | 1200 | DC-220 | 6.18 | 2036 |
| MC03-150L(RCDY-12) | 420 | 1200 | 1500 | 1350 | DC-220 | 8.58 | 3100 |
| MC03-165L(RCDY-14) | 460 | 1400 | 1650 | 1500 | DC-220 | 10.5 | 4028 |
| MC03-180L(RCDY-16) | 500 | 1600 | 1800 | 1640 | DC-220 | 11.1 | 4882 |
Note: The technical data above is organized according to the visible catalog information. The commutation controlling unit column in the catalog is partly cut off in the provided image, so it is not included here. Final model selection should be confirmed according to belt width, material layer thickness, installation height and iron removal requirements.
