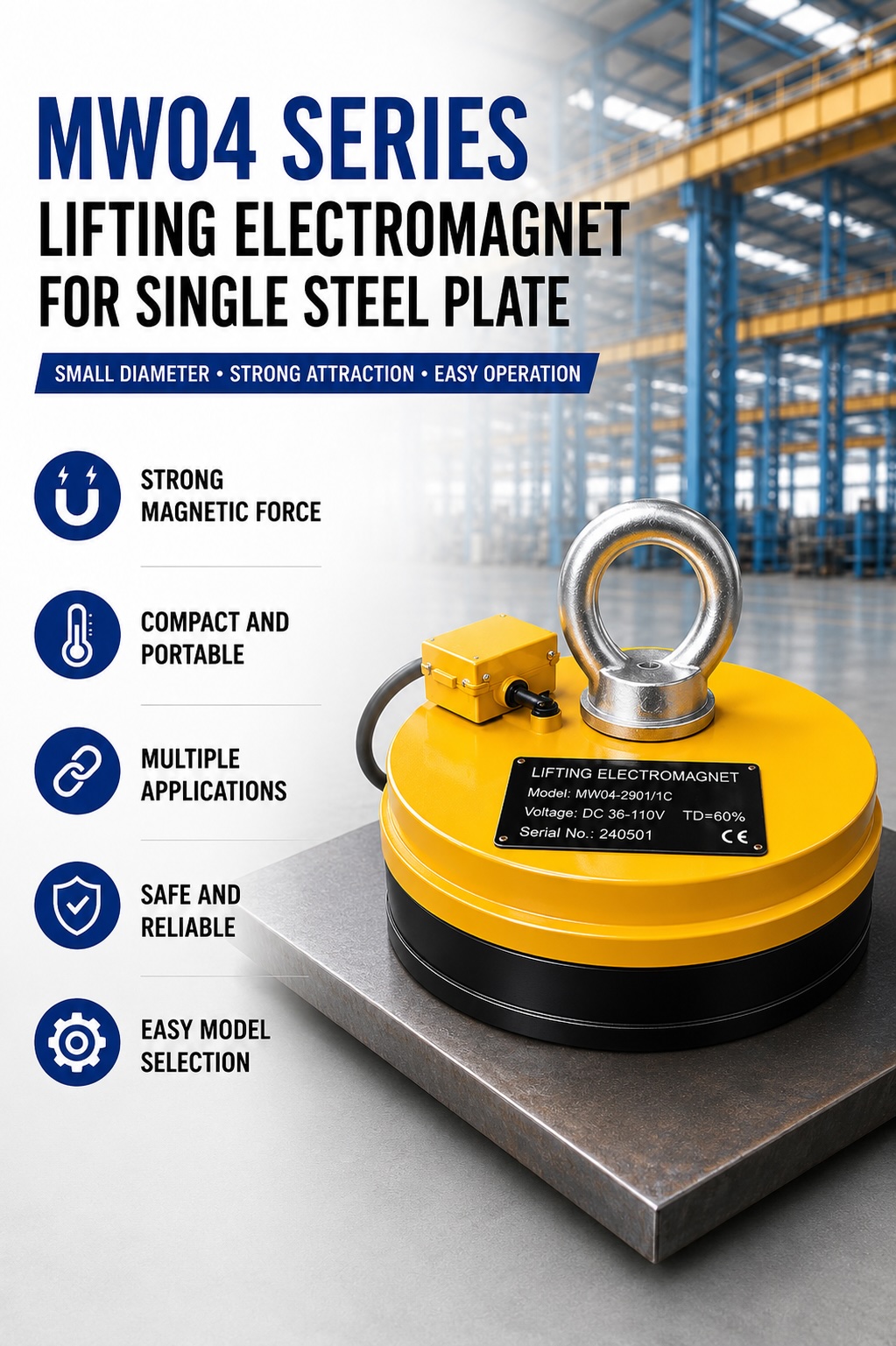

MW04 Series Lifting Electromagnet for Single Steel Plate
PRODUCT PARAMETERS
Description
MW04 Series Lifting Electromagnet for Single Steel Plate
MW04 Series lifting electromagnet is a small diameter round electromagnet designed for lifting and transporting single pieces of thin steel plates and long steel plates. It can also be used as an electromagnetic clamping device in operating machinery or as a magnetic hand for holding small materials.
When selecting the suitable model, users should consider the thickness, width, length and weight of the steel plate, so that the electromagnet and control equipment can match the actual working requirements.
Applications
- Lifting single pieces of thin steel plate
- Handling long steel plates
- Electromagnetic clamping in operating machinery
- Holding small materials as a magnetic hand
- Steel plate handling and industrial material transfer
Product Features
- Small diameter round electromagnet design
- Suitable for single-piece steel plate handling
- Can be used as electromagnetic clamping equipment
- Compact structure and convenient installation
- Model selection can be matched according to plate size and weight
Main Technical Data
| Model | Voltage / Duty Cycle | Overall Dimension A×B×C×D (mm) | Mass (kg) | Power (kW) | Max Size of Lifted Material by Single Unit | Average Share Size of Lifted Material by Multiple Units | Plate Thickness | Attracting Power |
|---|---|---|---|---|---|---|---|---|
| MW04-17T | DC-36~110V, TD-60% | 165×113×30×10 | 7 | 0.10 | 1200×1200 mm | 600×1200 mm | δ 3.2 | >100 kg |
| MW04-22T | DC-36~110V, TD-60% | 216×147×40×16 | 15 | 0.20 | 1400×1400 mm | 700×1400 mm | δ 5 | >200 kg |
| MW04-32T | DC-36~110V, TD-60% | 318×178×60×25 | 30 | 0.25 | 1600×1600 mm | 800×1600 mm | δ 6 / δ 10 / δ 20 | >300 kg / >800 kg / >2000 kg |
| MW04-40T | DC-36~110V, TD-60% | 406×480×100/55×16 | 75 | 0.40 | 2500×2500 mm | 1000×2500 mm | δ 12 / δ 32 | >4000 kg |
Note: Technical data can be customized according to steel plate thickness, width, length, weight and actual operating requirements.
