MW61 Series Lifting Electromagnet for Steel Scraps
PRODUCT PARAMETERS
Description

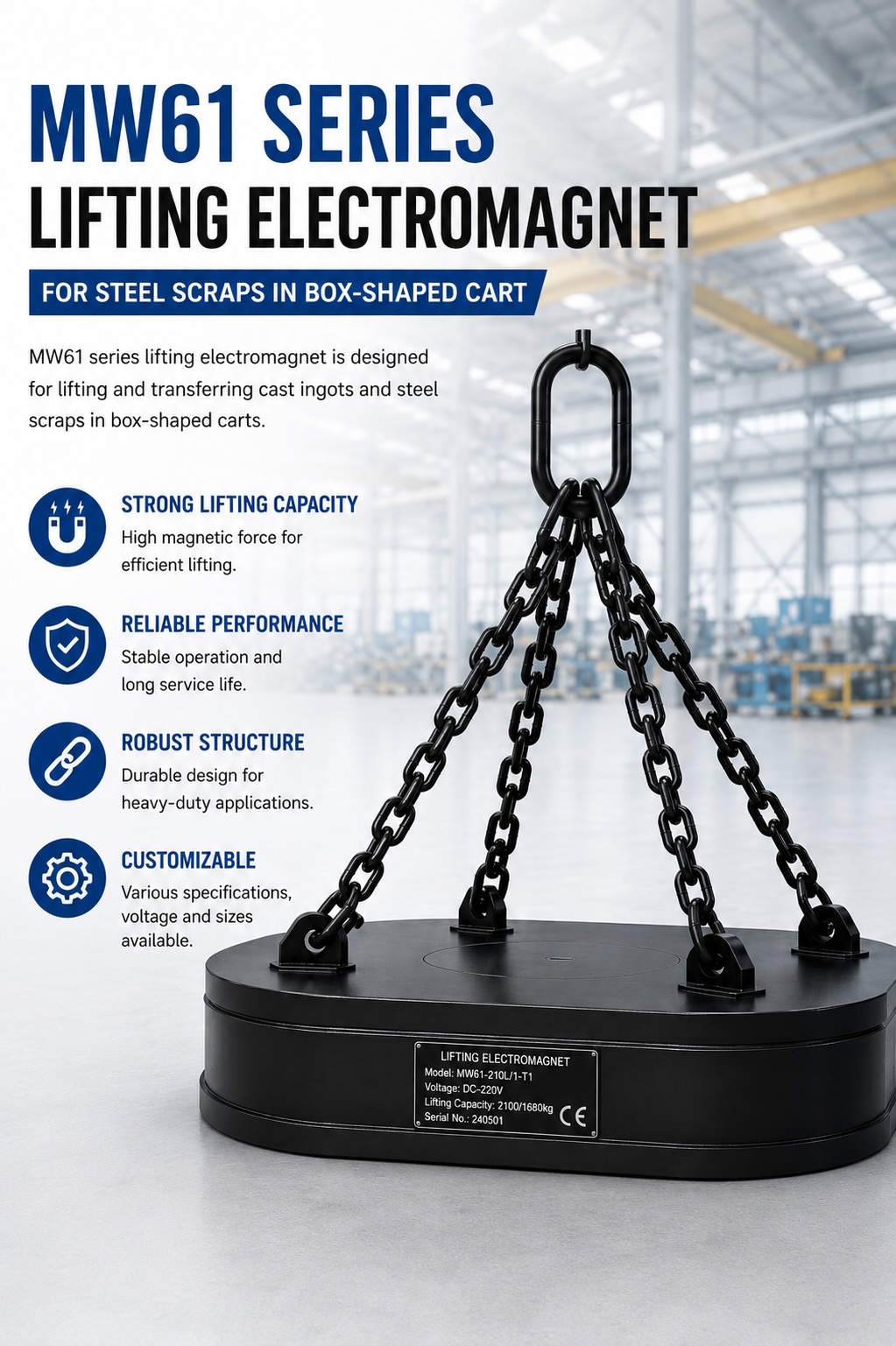

MW61 Series Lifting Electromagnet for Steel Scraps
MW61 Series lifting electromagnet is designed for lifting and transferring cast ingots and steel scraps in box-shaped carts. It is widely used in steel plants, foundries, scrap yards, metal recycling plants and other heavy-duty industrial material handling applications.
This series adopts a robust structure and stable electromagnetic system, providing strong lifting capacity and reliable performance under demanding working conditions. Different specifications can be selected according to the material type, lifting capacity, voltage and working environment.
Applications
- Lifting and transferring cast ingots
- Handling steel scraps in box-shaped carts
- Steel plants and foundries
- Scrap yards and metal recycling plants
- Heavy-duty industrial material handling
Product Features
- Strong magnetic force for efficient lifting operation
- Stable performance and reliable operation
- Robust structure for heavy-duty working conditions
- Suitable for cast ingots and steel scraps
- Customizable voltage, size, lifting capacity and control system
Main Technical Data
| Model | Voltage | Current (A) | Power (kW) | Lifting Capacity – Steel Ingot Cold/Hot State (kg) | Lifting Capacity – Steel Scrap Cold/Hot State (kg) | Mass (kg) | Overall Dimension A×B×C×D×E×F (mm) |
|---|---|---|---|---|---|---|---|
| MW61-200160L/1-76 | DC-200/200 | 109.8/75.7 | 31.9/15.2 | 2200/1900 | 1000/800 | 4200 | 2000×1500×1300×250×180×70 |
| MW61-300160L/1-76 | DC-200/200 | 195/135 | 56.6/27 | 3400/2850 | 1500/1250 | 5700 | 3000×1500×1570×310×210×60 |
| MW61-180160L/1-76 | DC-200/200 | 113/78 | 32.7/15.5 | 2550/2000 | 1150/900 | 5000 | 1800×1600×1500×310×210×60 |
| MW61-200200L/1-76 | DC-200/200 | 179/123 | 51.9/24.6 | 5000/4200 | 2300/1800 | 8400 | 2500×2000×2000×390×280×90 |
| MW61-400260L/1-76 | DC-200/200 | 267.3/184 | 77.53/36.8 | 12000/10000 | 5800/3500 | 22000 | 4500×2500×2000×390×280×90 |
| MW61-150110L/1-76 | DC-220 | 54 | 11.9 | 1500/1200 | 800/700 | 2500 | 1500×1100×1240×250×175×50 |
| MW61-250160L/1-76 | DC-220 | 118.6 | 26 | 2800/2400 | 1300/1000 | 6500 | 2500×1500×2000×310×210×60 |
Note: Technical data can be adjusted according to actual working conditions and customer requirements.
